Residential building Masis City Araratyan street
A multifunctional residential complex is planned at 5 Araratyan Street, Masis (plot area: 4,877 m²). The design is based on the client’s assignment, the architectural planning permit (16.11.2023), property registration certificate, engineering-geological conclusion, and geodetic survey.

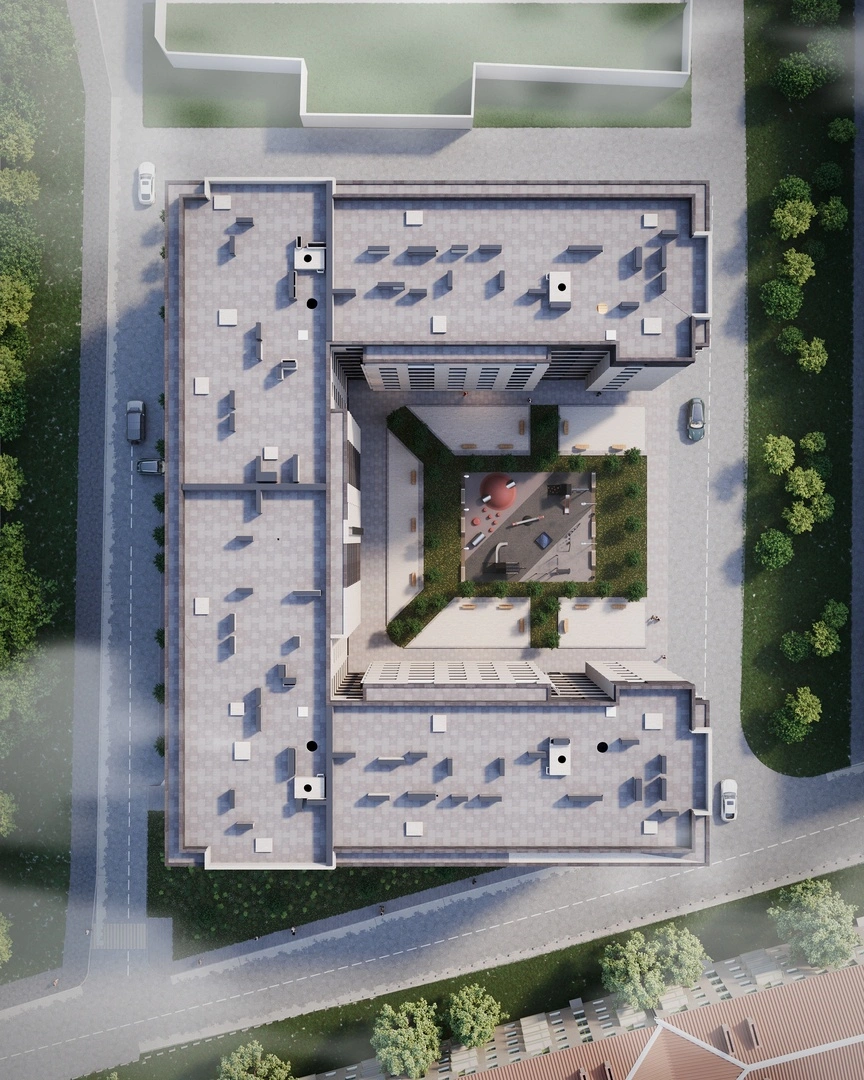

The P-shaped building consists of 4 entrances, each with an elevator and stairwell. It includes 1 underground and 9 above-ground floors.
The –3.30 m level is designed as a parking area (adaptable as a civil defense shelter) with accessible sanitary facilities. The ground floor (±0.00) is allocated for public use, while the upper floors (+4.80 to +27.90 m) are residential. Parking access is from the northwest street. The building is accessible for people with disabilities.

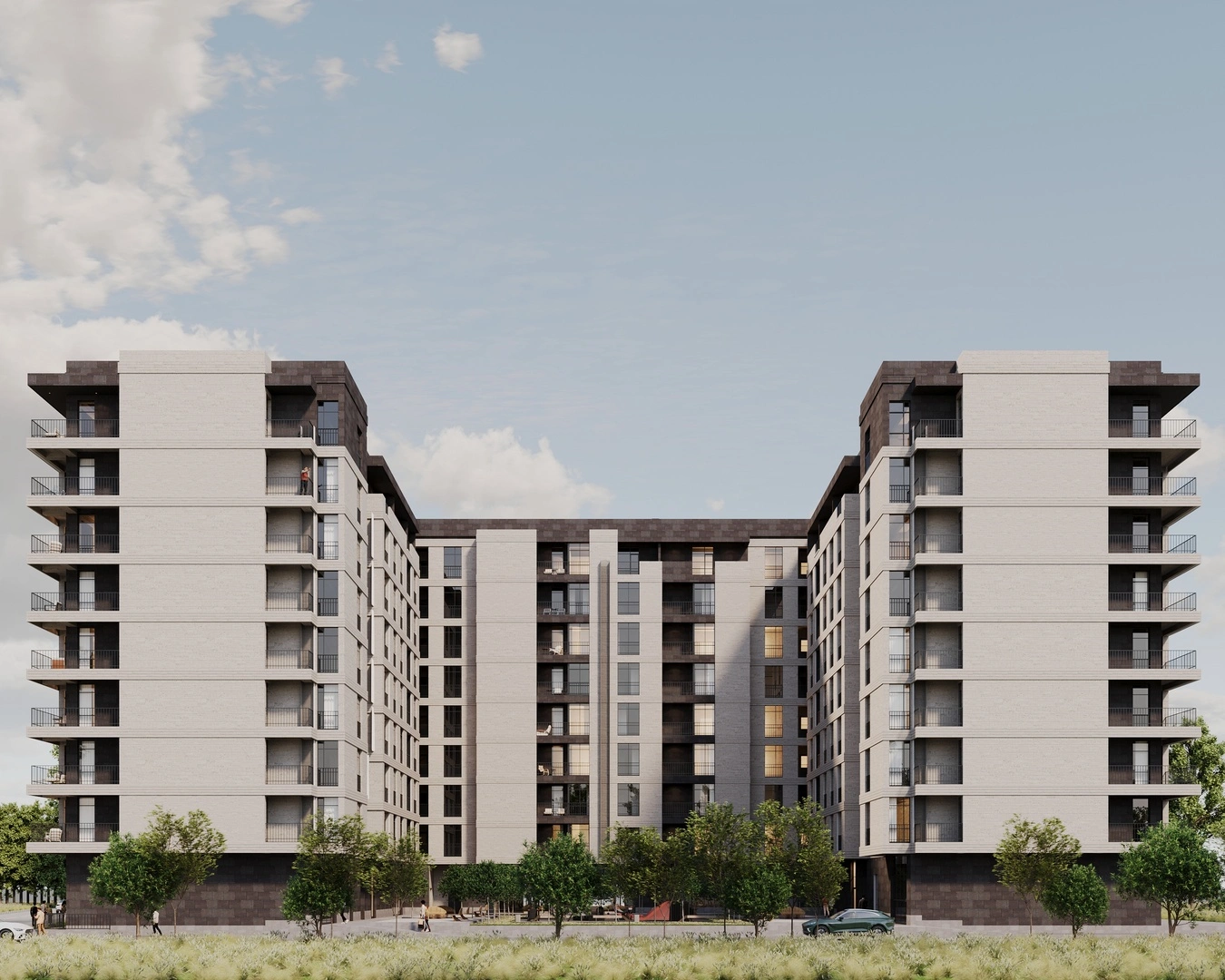

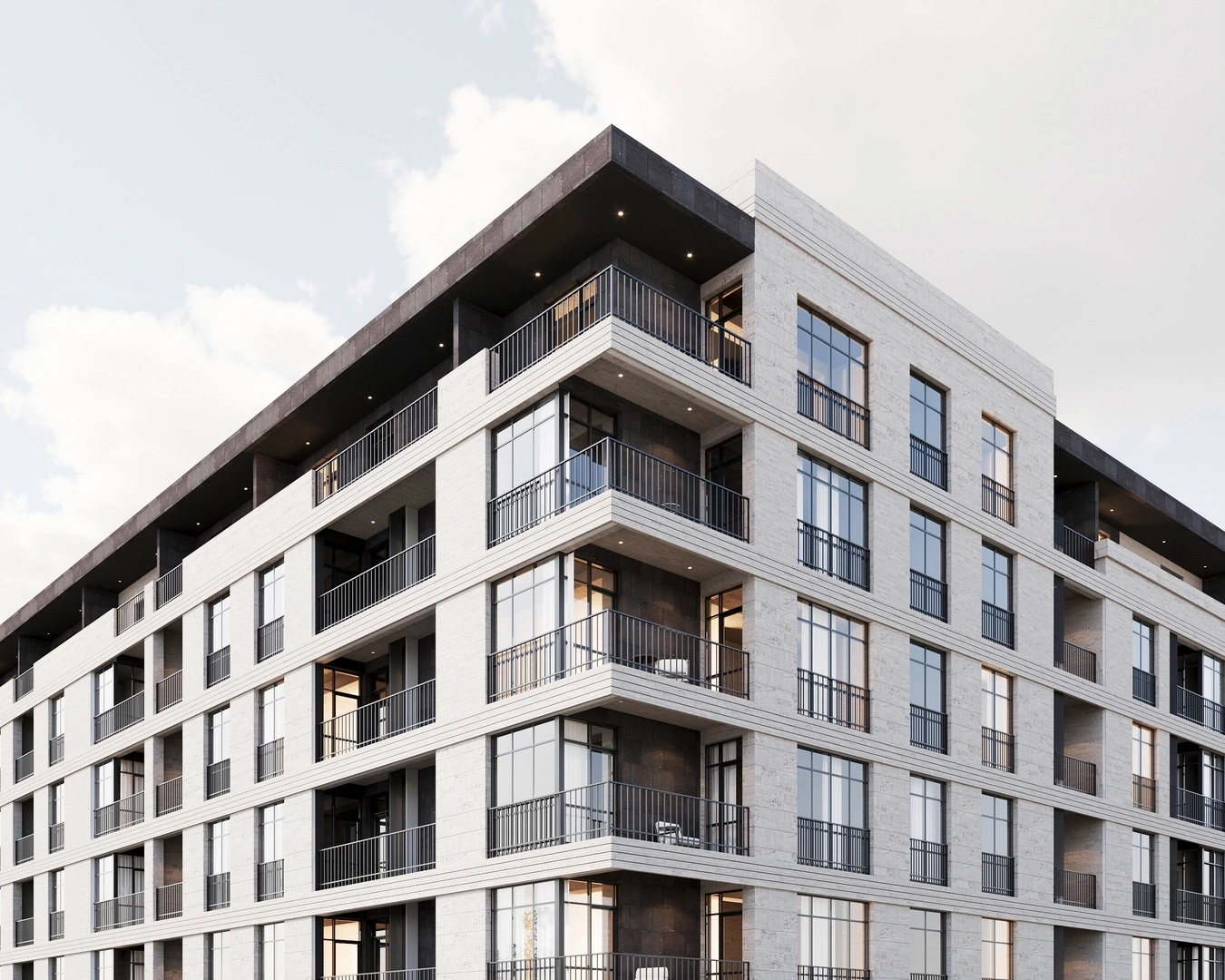

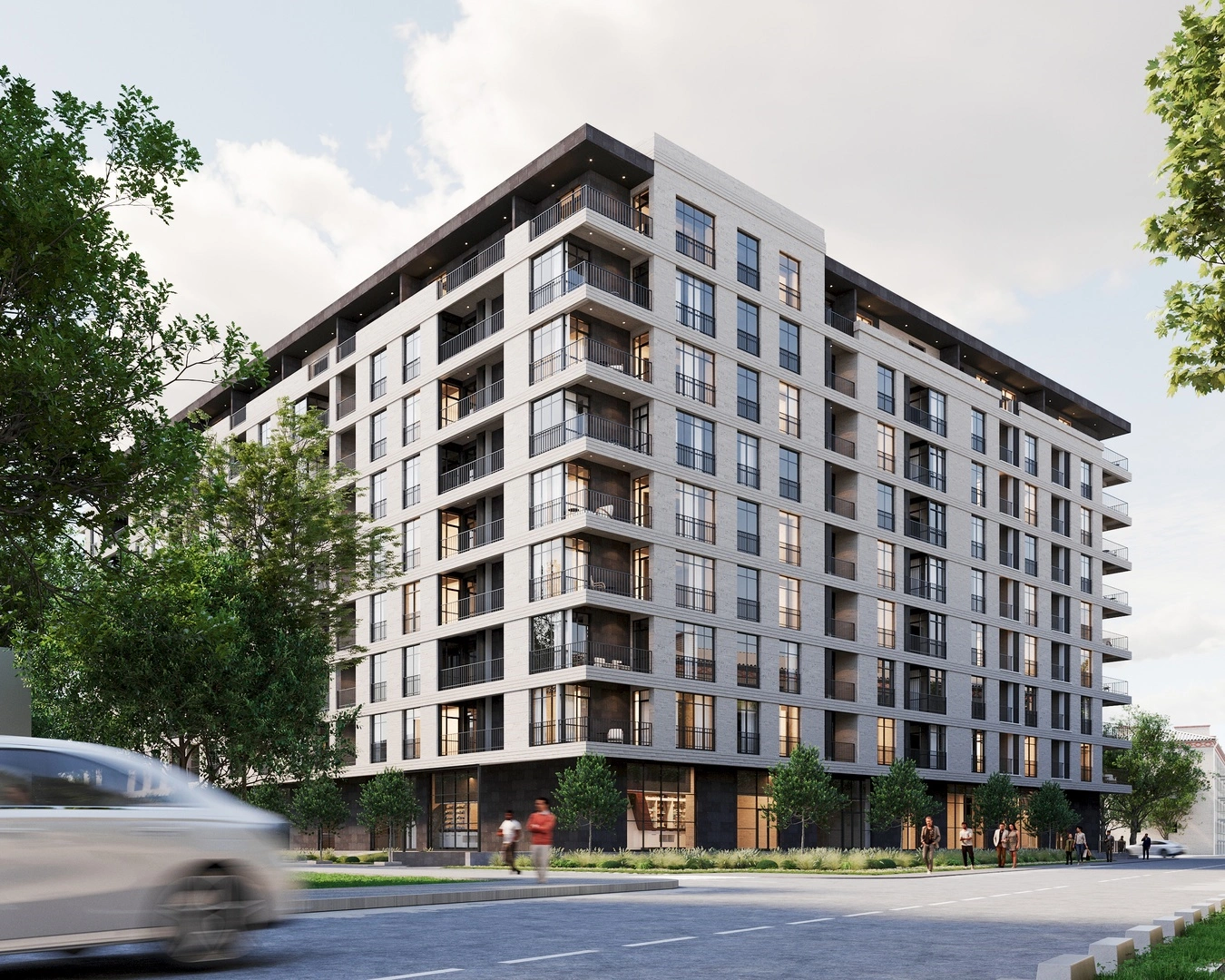

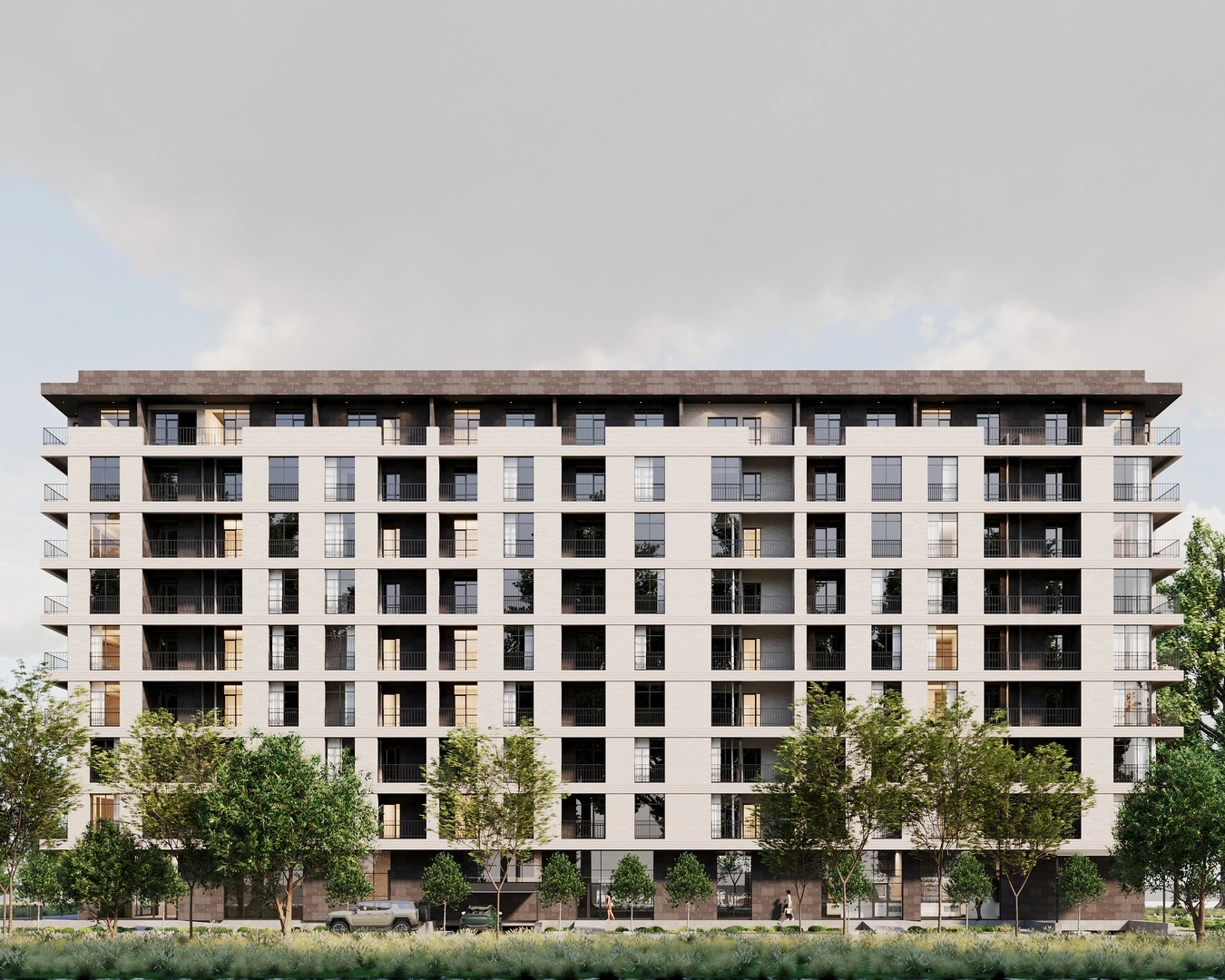

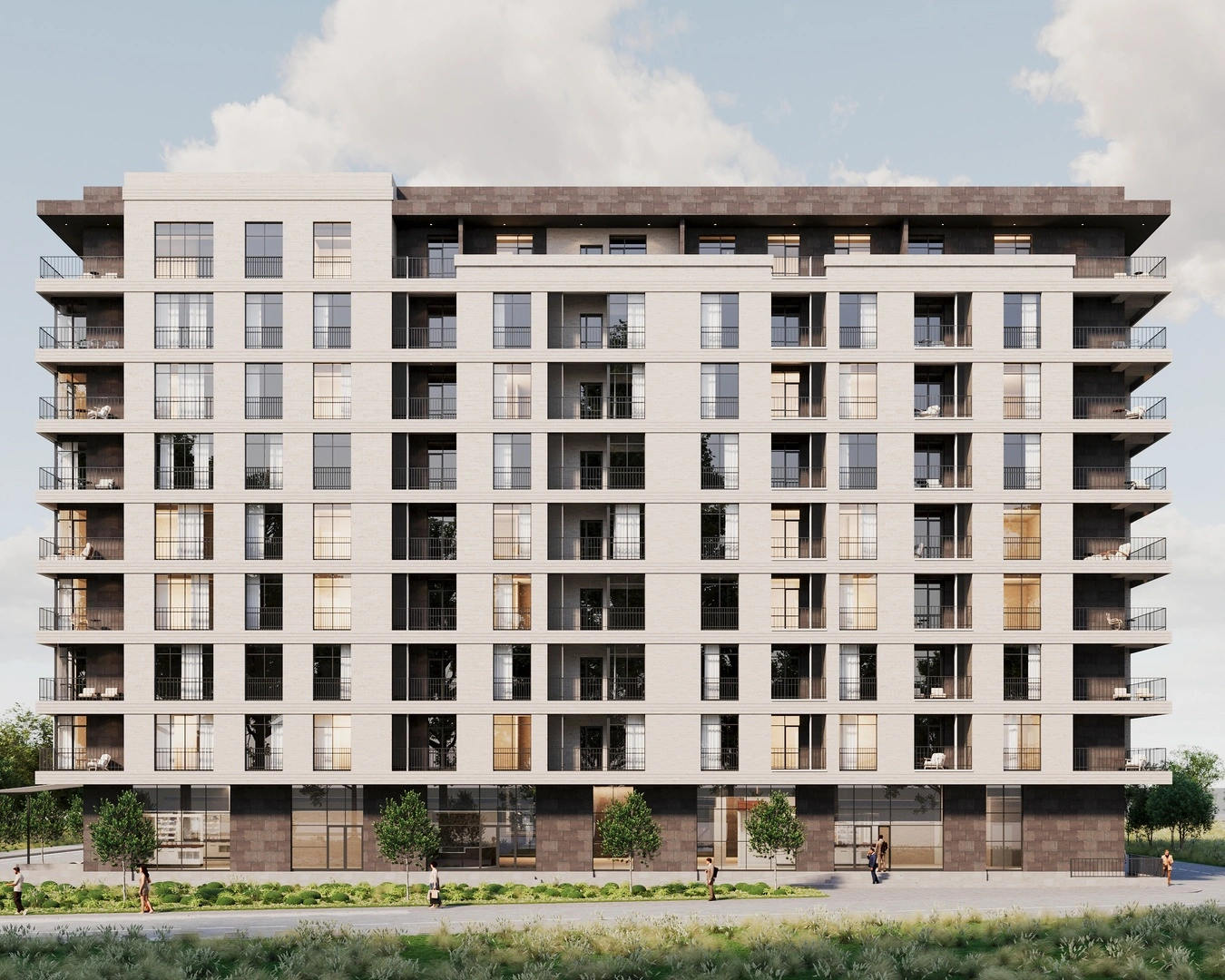

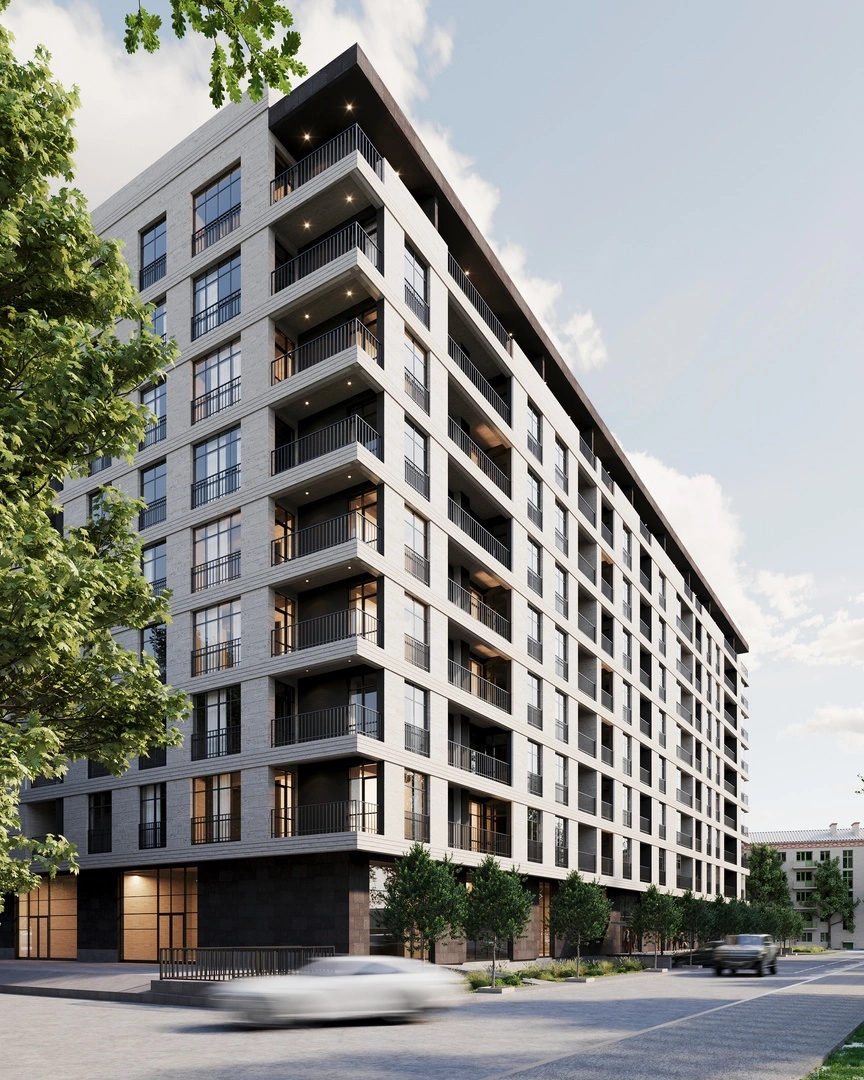

The structure is a monolithic reinforced concrete frame with flat roofing and internal drainage. The façade combines travertine, black tuff, and basalt.
Key Data:
- Building footprint: 1,965.16 m² (40.29%)

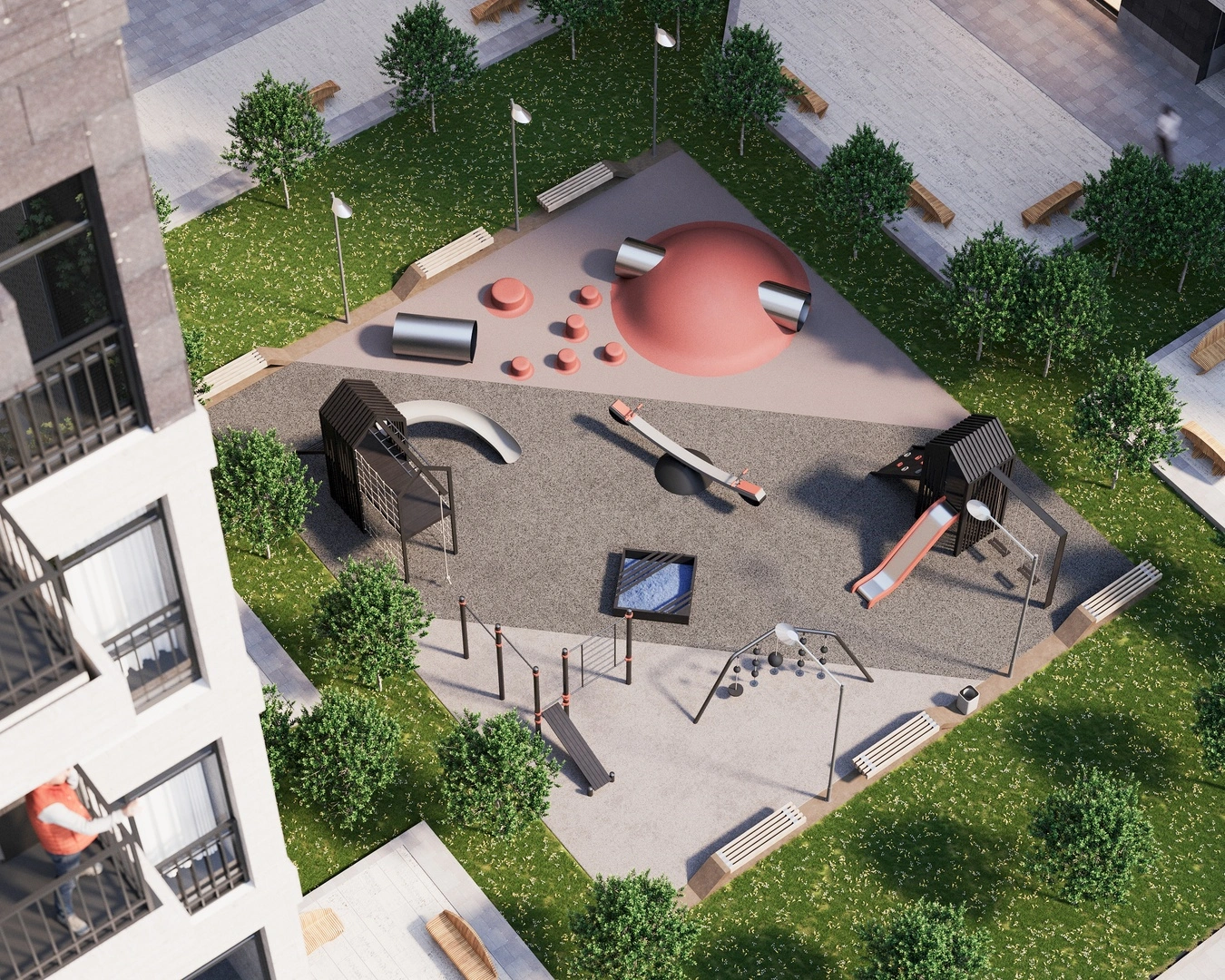

- Landscaping: 1,950.8 m² (40%)
- Floors: 9 above-ground, 1 underground
- Height: 32.9 m
- Apartments: 200
- Parking spaces: 131
- Total construction area: 24,908.49 m²
